Dashboards

📘

Supported Platforms

Dashboard visibility is supported on Google Chrome running on Windows, macOS, and Linux operating systems, as well as on Android devices.

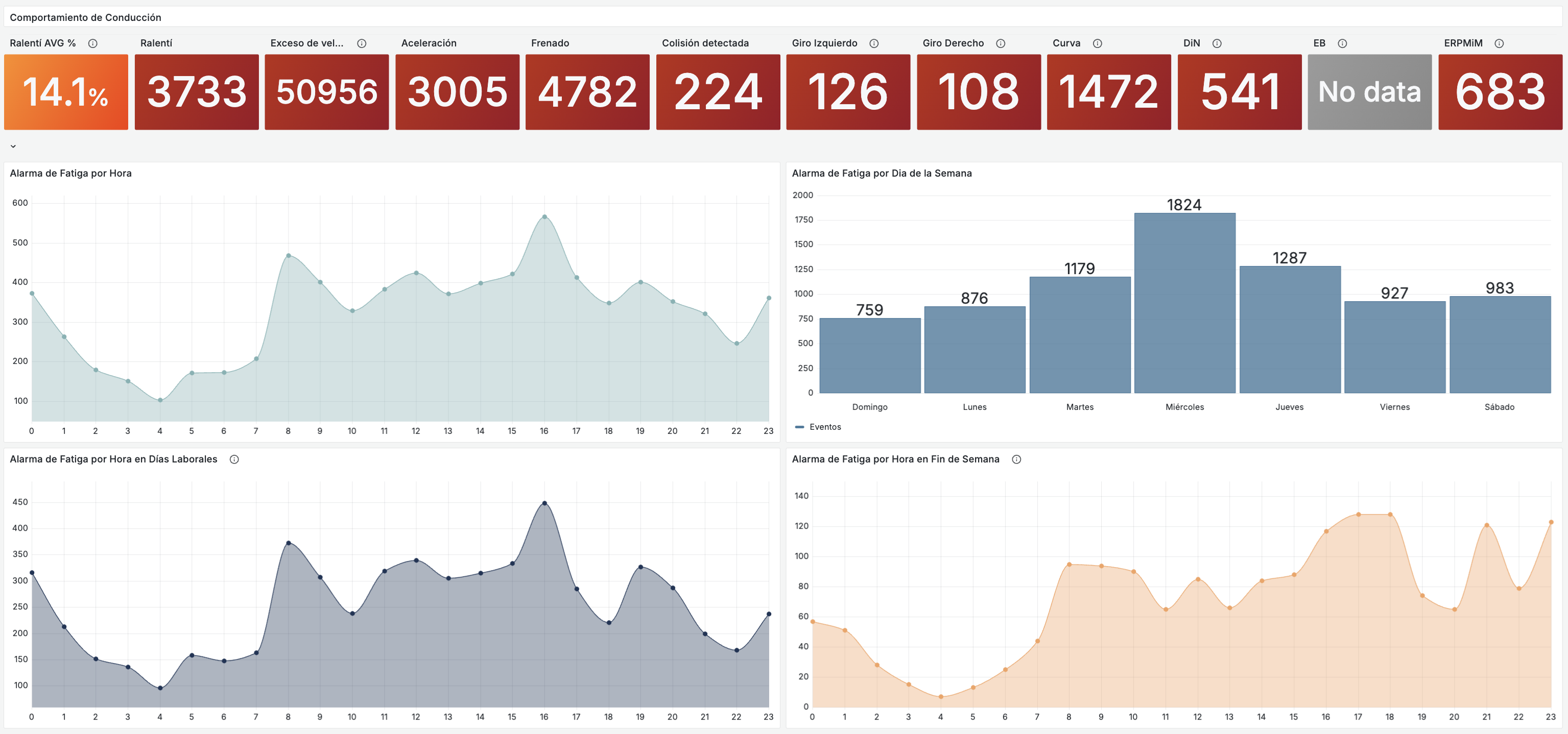

Analisis de Conduccion (Safety)

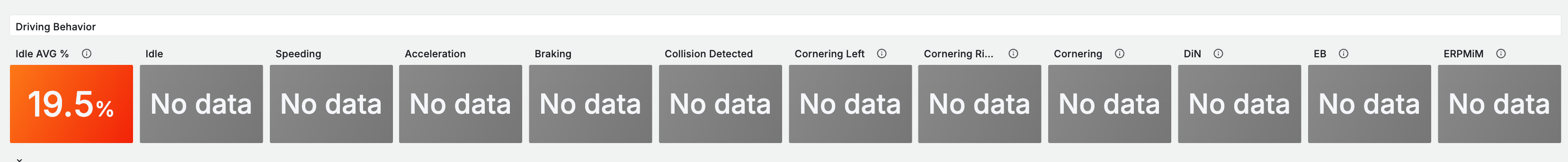

Driver Behavior

• aggdrvcrv - The driver took a turn very aggressively.
• aggrclscrv - The driver made a sharp left turn.
• aggropncrv - The driver made a sharp right turn.
• negac - The vehicle slowed down significantly.
• posac - The vehicle sped up significantly.
• spd - The driver exceeded the speed limit (measured by GPS).
• crnrleft - The vehicle made a left turn.
• crnrright - The vehicle made a right turn.

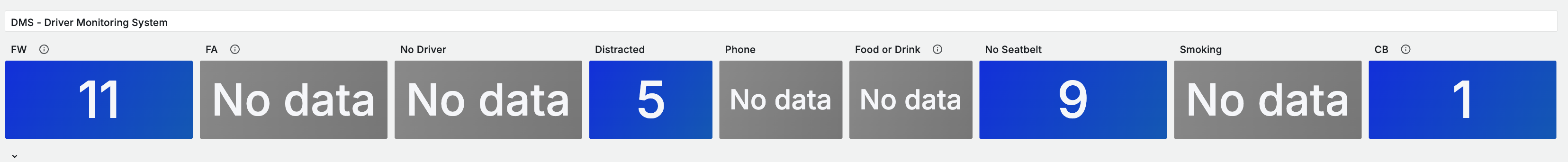

Driver Monitoring System

• adastlgt - The driver is following the vehicle ahead too closely for too long.
• ftgalarm - The driver shows signs of fatigue (e.g., yawning, eyes closing, head nodding).
• ftgcamblck - The driver-facing camera is blocked (e.g., by an object or obstruction).
• ftgcamphon - The driver is using a mobile phone
• ftgcamsmok - The driver is smoking.
• ftgdistrct - The driver appears distracted (not focused on the road).
• ftgdrvmis - The system cannot detect the driver’s face.
• ftgfoodrnk - The driver is eating or drinking.
• ftgnodrivr - No driver is detected by the monitoring system.
• ftgnosblt - The driver’s seatbelt is not fastened.
• ftgtamper - The monitoring camera is being tampered with or its view is compromised.
• ftgwarning - The driver has been driving too long or is showing signs of fatigue.

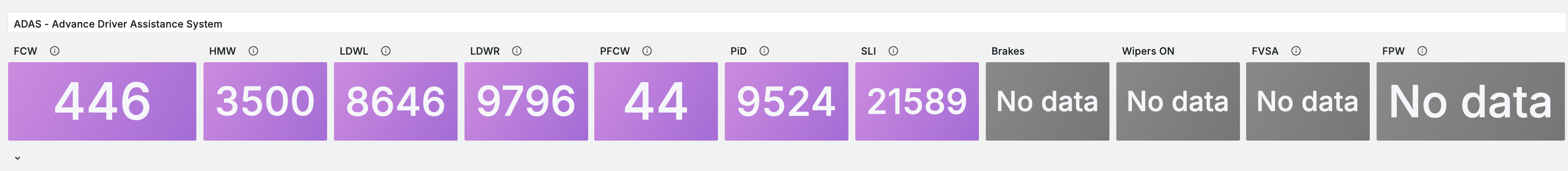

ADAS

• mblypdfcw - Forward collision warning (vehicle ahead is too close).
• mblybrkon - Brakes have been activated by the ADAS system.
• mblyfcw - Forward collision warning (vehicle ahead is too close).
• mblyhdwrn - Following distance warning (too close to the vehicle ahead).
• mblylldw - Left lane departure warning.
• mblypddng - Pedestrian detected nearby.
• mblyrldw - Following distance warning (too close to the vehicle ahead).
• mblyspd - Speed exceeds the configured limit.
• mblywprs - Windshield wipers are ON.
• mdasfpw - Proximity alert (object or vehicle too close).
• mdasfvsa - Front vehicle start alarm (vehicle in front has started moving).

Vehicle Operations (Vehicle status and incident detection):

• coldet - Abnormal vehicle movement detected (e.g., impact or harsh vibration).
• idl - The vehicle is idle (engine on, but not moving).
• coast - The vehicle is coasting (moving without acceleration).
• crash - Crash detected.
• enbrkon - Engine braking detected (engine slowing the car down).
• ovrpmmov - High engine RPM detected while the vehicle is in motion.

Undefined

• ftgcamyawn
• lumewarn
• lumefatigu
• ftgcamdrow
• lumedrivrn
• lumenodrvr
• noprsncdrv
• lumedistra
• acclvideo
• brvideo

Fatigue Alarm panels
